Generators / 50KW FPT Generator

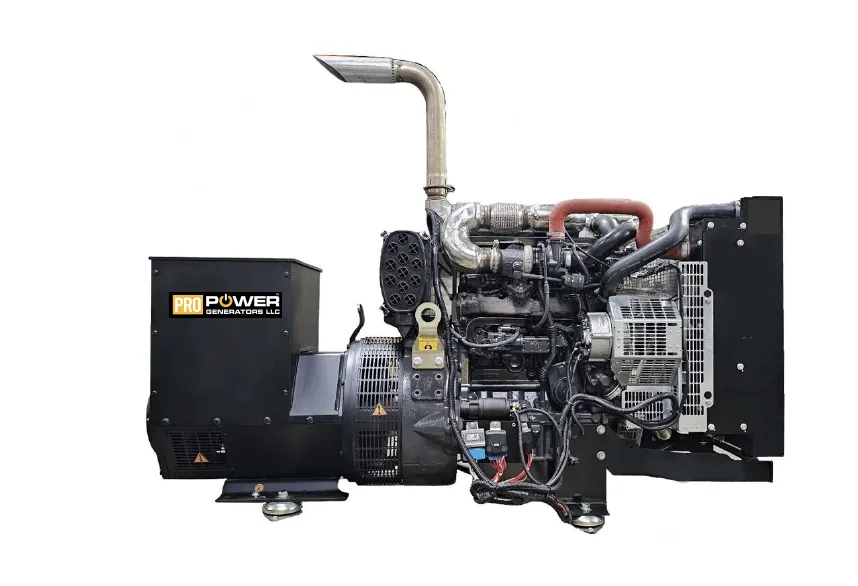

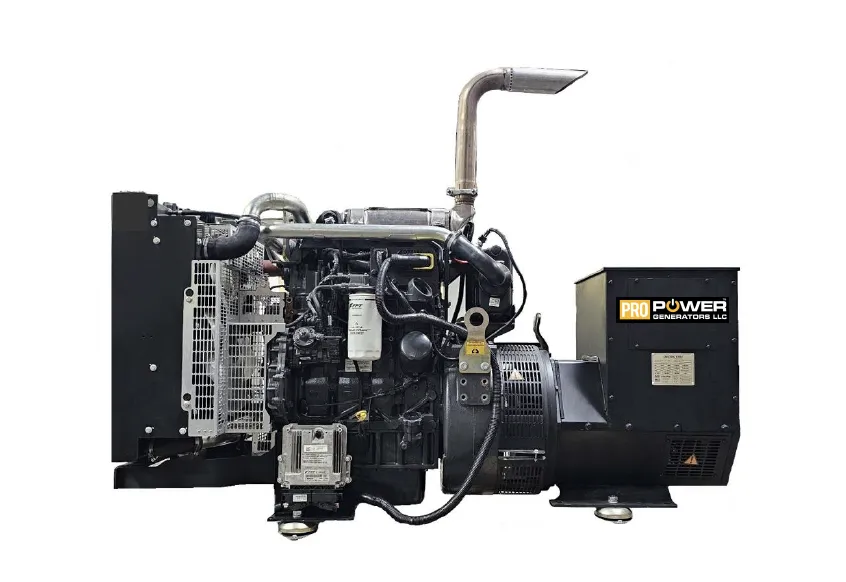

50 KW Generator
EPA-Certified Tier 4 Final
Model: PPG50F-T4
Manufacturer: FPT
$21,765.00
FPT F28 Diesel 4 Cylinder 1800 rpm Turbo Charged Engine, Heavy, Duty Brushless Generator End with Marine Coating, Automatic Voltage Regulator, LCD Control Panel with Key Switch, Safety Shutdown System for low oil pressure & high coolant temperature, Stainless Steel DOC Exhaust Muffler, 12 Volt Electrics, Vibration Isolators, Front Cover Belt Guard, Air Cleaner, Oil and Fuel Filters, Owner's Manual, 2 Year 2,000 Hour Engine Warranty, 1 Year 1,000 Hour Generator Warranty
Additional Product Information

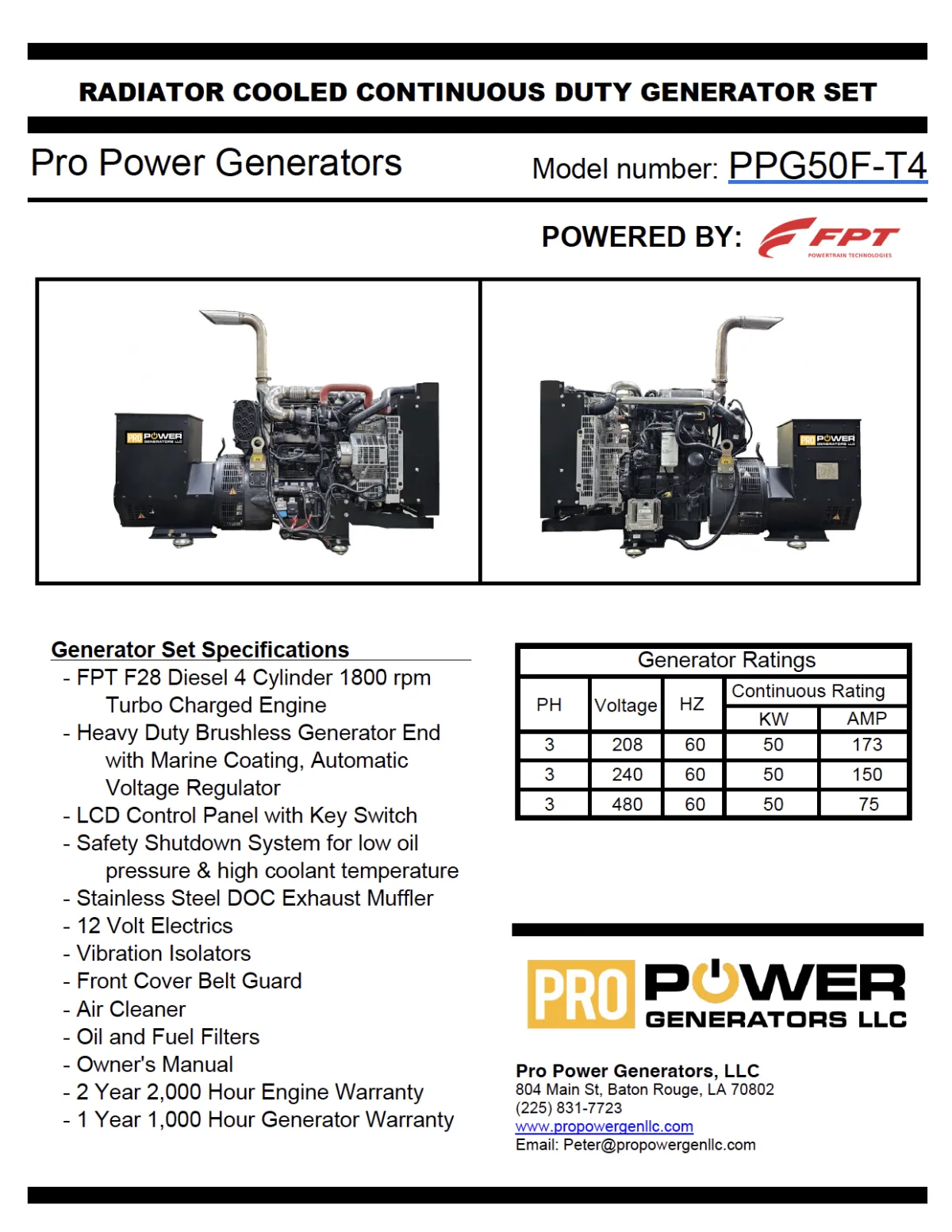

Generator Set Specifications
FPT F28 Diesel 4 Cylinder 1800 rpm Turbo Charged Engine
Heavy Duty Brushless Generator End with Marine Coating
Automatic Voltage Regulator
LCD Control Panel with Key Switch
Safety Shutdown System for low oil pressure & high coolant temperature
Stainless Steel DOC Exhaust Muffler
12 Volt Electrics
Vibration Isolators
Front Cover Belt Guard
Air Cleaner
Oil and Fuel Filters
Owner's Manual
2 Year 2,000 Hour Engine Warranty
1 Year 1,000 Hour Generator Warranty

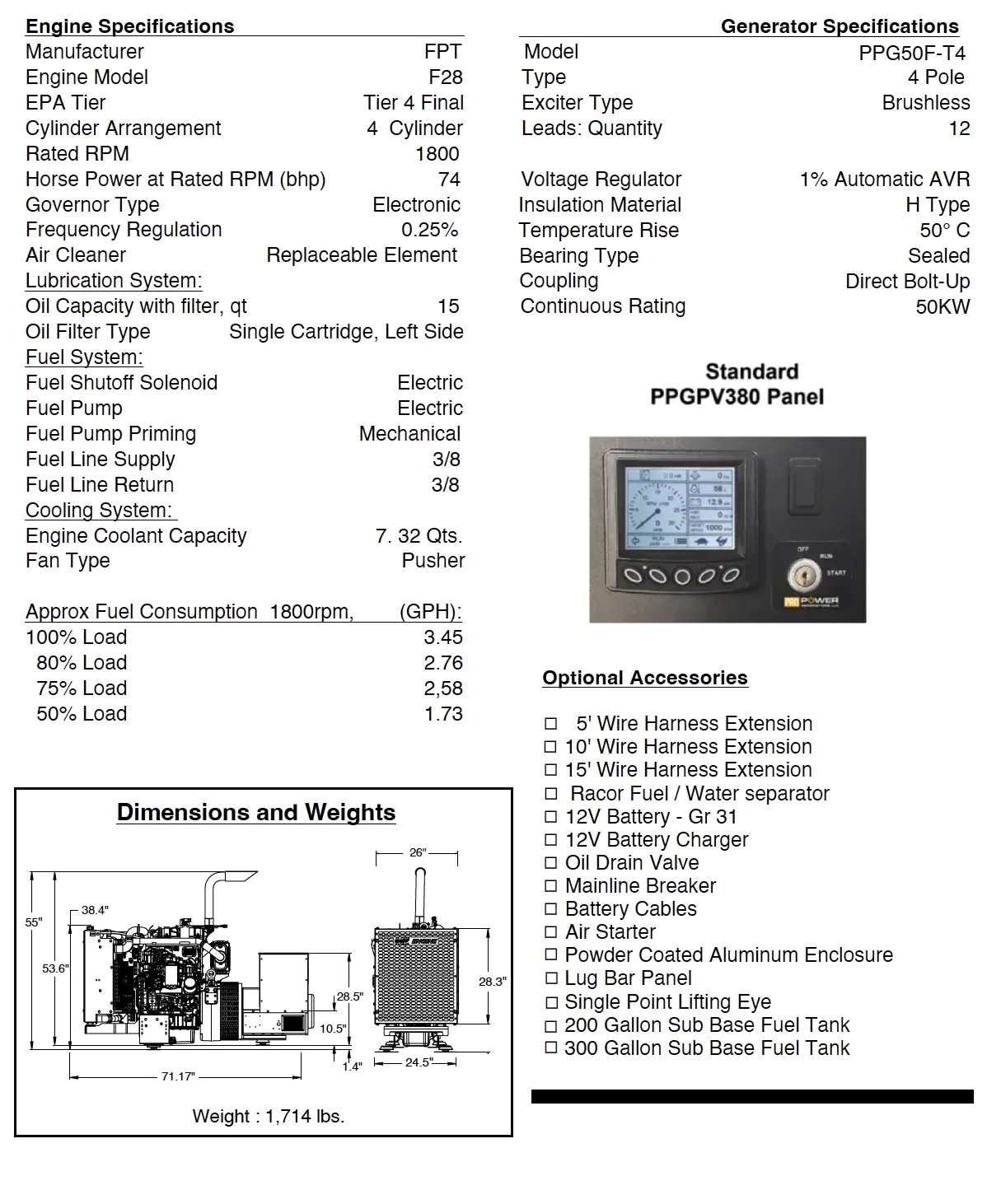

Engine Specifications
Manufacturer: FPT
Engine Model: F28
EPA Tier: Tier 4 Final
Cylinder Arrangement: 4 Cylinder
Rated RPM: 1800
Horse Power at Rated RPM (bhp): 74
Governor Type: Electronic
Frequency Regulation: 0.25%
Air Cleaner: Replaceable Element
Lubrication System:
Oil Capacity w/out filter, qt.: 15
Oil Filter Type: Single Cartridge, Left side
Fuel System:
Fuel Shutoff Solenoid: Electric
Fuel Pump: Electric
Fuel Pump Priming: Mechanical
Fuel Line Supply: 3/8
Fuel Line Return: 3/8
Cooling System:
Engine Block Coolant Capacity, qt: 4.75
Approx. Fuel Consumption, (GPH):
100% Load: 3.45
80% Load: 2.76
75% Load: 2.58
50% Load: 1.73
Generator Specifications
Model: PPG50F-T4
Type: 4 Pole
Exciter Type: Brushless
Leads: Quantity: 12
Voltage Regulator: 1% Automatic AVR
Insulation Material: Class H
Temperature Rise: 50° C
Bearing Type: Sealed
Coupling: Direct Bolt-Up
Continuous Rating: 50KW
Optional Accessories
Remote Panel Option with Wire Harness
Available in:
◻6 foot
◻10 foot
◻20 foot
(2) Racor Fuel / Water Separator
12 Volt Battery - Gr 24
12 Volt Battery Charger
ESD Air Shut Down Valve
6' Manual Cable for ESD Valve
Spark Arrestor
Oil Drain Valve
Air Starter
Mainline Breaker
Aluminum Enclosure Package with Stainless Steel Hardware
Sub-Base Steel Fuel Tank Package with Fuel Level Gauge
